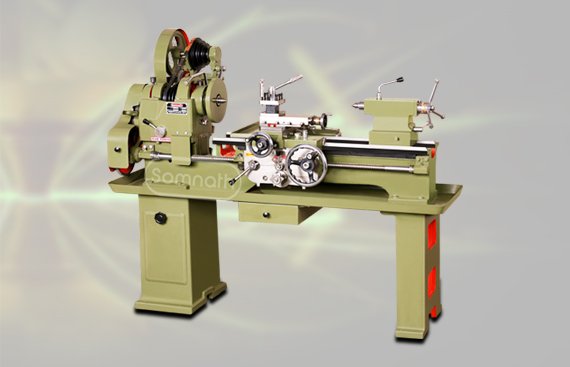

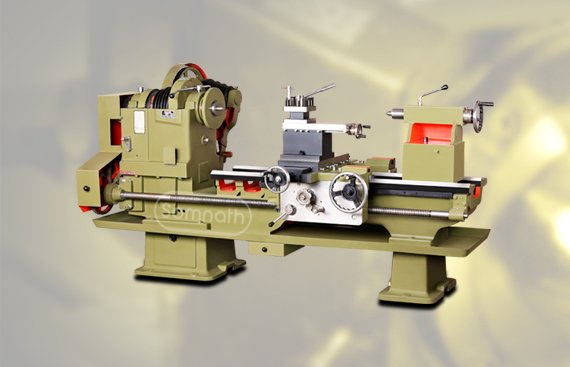

HOME ABOUT US PRODUCTS INQUIRY CONTACTS         Products   Heavy Duty Lathe Machine     Heavy Duty Model Length ABC* Weight** SH-1 1675 mm 430 mm 1050 kg SH-2 2135 mm 890 mm 1200 kg SH-3 2740 mm 1500 mm 1400 kg SH-4 3050 mm 1800 mm 1650 kg SH-5 3660 mm 2410 mm 1900 kg   AVAILABLE SIZE UPTO 42'   ABC*         =  Admit Between Center Weight**  =  Approximate Weight       Medium Duty Lathe Machine       Medium Duty Model Length ABC* Weight** SM-1 1370 mm 405 mm 575 kg SM-2 1600 mm 635 mm 650 kg SM-3 1830 mm 865 mm 675 kg   ABC*         =  Admit Between Center Weight**  =  Approximate Weight     Light Duty Lathe Machine       Light Duty Model Length ABC* Weight** SL-1 1370 mm 635 mm 430 kg SL-2 1600 mm 865 mm 470 kg SL-3 1830 mm 1090 mm 490 kg   ABC*         =  Admit Between Center Weight**  =  Approximate Weight     Extra Heavy Duty Lathe Machine       Extra Heavy Duty Lathe Machine Model Length ABC* Weight**   ABC*         =  Admit Between Center Weight**  =  Approximate Weight     Standard Accessories - Chuck Plate - Center Adopter - Dead Center - Thread Dial Indicator - Change Gear Set - Motor Pulley Extra Accessories - Face Plate - Carrier Plate - Steady Rest - Follow Rest - Full Norton Gear Box - Independent Chuck - Self Centering Chuck - Electric Motor - R/F Switch     Technical Specificatoins   Light Duty Medium Duty Heavy Duty CAPACITY       Height of center 165 mm 215 mm 254 mm Swing Over Bed 325 mm 425 mm 490 mm Swing OVer Cross Slide 175 mm 239 mm 290 mm Movement of Cross Slide 225 mm 250 mm 300 mm Swing in Gap 500 mm 620 mm 800 mm         BED       Bed type 2V / 2 Flat 2V / 2 Flat 2V / 2 Flat Bed width 241 mm 279 mm 325 mm Length of Gap in Bed 110 mm 110 mm 150 mm Length in Gap in Front of Face Plate 125 mm 125 mm 200 mm         MAIN SPINDLE       Size of Threaded Spindle Nose 8 TPI / 60 mm 6 TPI / 75 mm 6 TPI / 75 mm Taper Bore Spindle Sleeve MT-3 MT-4 MT-4 Spindle Bore 40 mm 52 mm 52 mm Spindle Pulley Single V-Belt Double V-Belt Double V or Flat Belt Spindle Bearing Front TRB 32212 TRB 32214 TRB 580572/51114 Spindle Bearing Read TRB 32211 TRB 32213 TRB 32214/51114         TAIL STOCK       Spindle Diameter 38.1 mm 50.8 mm 50.8 mm Taper Bore in Spindle MT-3 MT-4 MT-4 Spindle Travel 115 mm 150 mm 190 mm         COMPOUND SLIDE       Travel of Compound Slide 120 mm 150 mm 150 mm Tool Shank Section 22x22 mm 25x25 mm 25x25 mm Swivelling Degree 45-0-45 75-0-75 90-0-90         SPEED       No. of Speeds 8 6 8 Range (RPM) 35-825 40-550 25-475         THREAD/No. RANGE       Lead Screw Diameter & Pitch 25.4mmx4TPI 31.75mmx4TPI 38.1mmx4TPI Metric 0.5 to 7 mm/21 0.5 to 7 mm/21 1 to 6mm/13 Inch 4 to 48TPI/29 4 to 48TPI/29 2 to 24TPI/19         ELECTRICAL       Main Motor (1440 R.P.M. /AC) 1 H.P./440V 2 H.P./440V 2 H.P./440V Motor "V" Belt B-52 B-62 B-72       Note: Specifications and Design of machine Subject to changes without any notice, due to continuous product improvement.            » G. M. Conrod           » Rajkot Machine Tools        © 2008. Somnath Machine Tools. All rights reserved.
